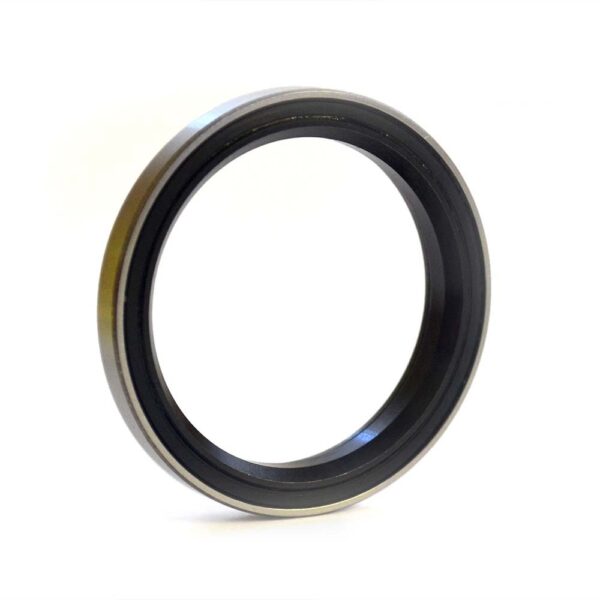

ACB518K – 1-1/2″ (40 x 51.8 x 8) – 36/45 deg

Description

ACB518K HEADSET BEARING – Αγγλικής προέλευσης και κατασκευής.
THE MOST POPULAR LOWER 1 – 1 / 2″ BEARING – CANE CREEK FIT

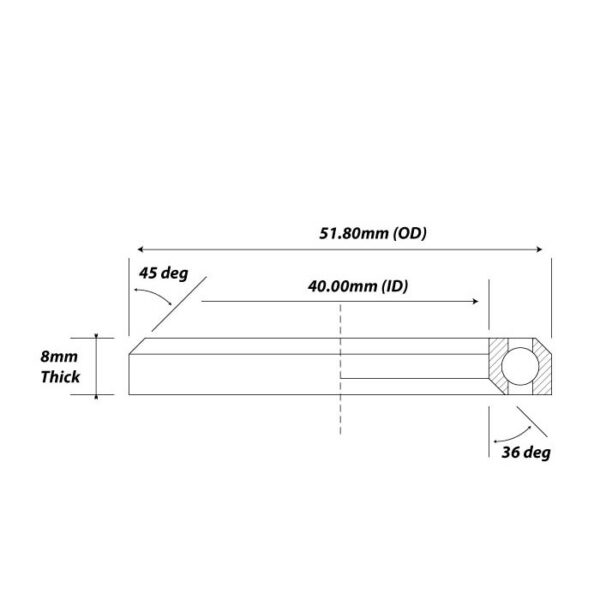

Inner x Outer x Depth (mm): 40 x 51.8 x 8
Inch Dia: 1 – 1 / 2”
Angle / Chamfer (Deg): 36 / 45

DETAILS
Inner x Outer x Depth (mm): 40 x 51.8 x 8
Inch Dia: 1-1/2”
Angle / Chamfer (Deg): 36 / 45
Bearing ID: 40.00mm
Bearing OD: 51.8mm
Bearing Thickness: 8.0mm
Internal Angle: 36 Degrees
External Angle: 45 Degrees
Material: Bearing Steel
Grease: Mobil XHP-222 or SINOPEC HTHS Bearing Grease
Seal: Double-sealed 2RS
Material: Chrome Steel 100Cr6 (Race & Balls)
Cage Material: Nylon PA66
Equivalent Part Ref: MR110, TH-073 & TK518B
