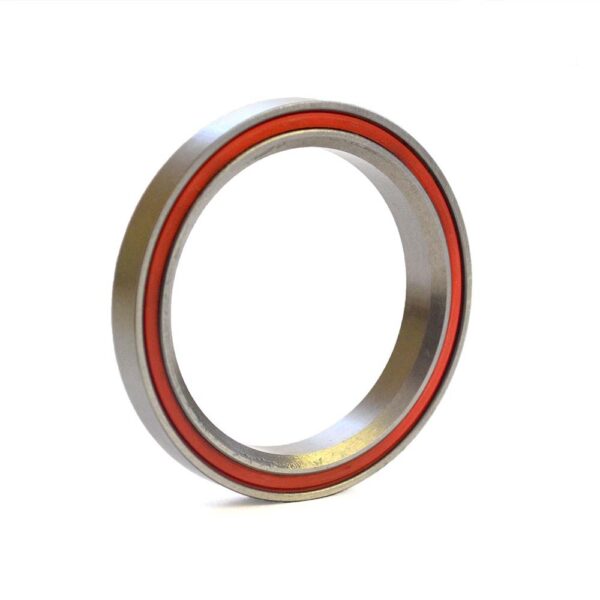

P16H8 – 1-1/2″ (40 x 52 x 8) – 45/45 deg

Description

P16H8 HEADSET BEARING – Αγγλικής προέλευσης και κατασκευής.

Inner x Outer x Depth (mm): 40 x 52 x 8
Inch Dia: 1 – 1 / 2”
Angle / Chamfer (Deg): 45 / 45
Material: Chromium Steel

DETAILS

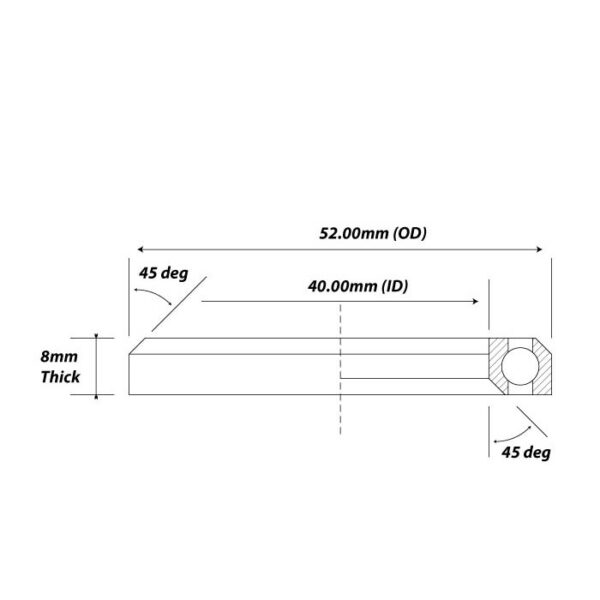

Inner x Outer x Depth (mm): 40 x 52 x 8
Inch Dia: 1-1/2”
Angle / Chamfer (Deg): 45 / 45
Bearing ID: 40.00mm
Bearing OD: 52.00mm
Bearing Thickness: 8.0mm
Internal Angle: 45 Degrees
External Angle: 45 Degrees
Material: Bearing Steel
Grease: Mobil XHP-222 or SINOPEC HTHS Bearing Grease
Seal: Double-sealed 2RS
Material: Chrome Steel 100Cr6 (Race & Balls)
Cage Material: Nylon PA66
Equivalent Part Ref: ACB52
